AIRMAN SDG Series Heavy-Duty Engine Generators
Engineered for supreme durability, exceptional fuel efficiency, and quiet operations. Ranging from 10.5 kVA to 300 kVA to power your manufacturing plants, infrastructure job sites, and telecommunication hubs seamlessly.
ISO 9001
Certified Quality Mgmt
ISO 14001
Environmental Standard
100%
Japan Quality Inspected
SDG13S to SDG300S
10.5 ~ 300 kVA
Features fully bundled integrated large capacity oil fences, high-performance automatic voltage regulation (AVR), and optimized brushless alternators.
- Ultra-Quiet Muffler
- High Fuel Autonomy
- Built-in Oil Fence
- Dual Voltage Selector
AIRMAN SDG Series Heavy-Duty Engine Generators
Every element of the Airman SDG Series is built to endure the roughest site environments while keeping toxic emissions and acoustics to a bare minimum.
Fully Bunded Oil Fence (Eco-Friendly)
No separate external fuel bund is required! The complete package contains an all-inclusive double-wall steel fuel tank and integrated fluid containment fence with up to 110% total capacity to protect against hazardous leaks.
Weatherproof Ingress Protection
Specially designed air inlet ports increase structural oxygen flow while drastically minimizing suction pressure. Premium automotive-grade insert type seals completely prevent rainwater infiltration.
Seamless Dual Voltage Selection
Easily switch three-phase voltage ranges back and forth from 200/220V to 400(380)/440V via short connecting plate adjustments in the control terminal. Instant indicator lamps confirm voltage live on the fly.
Super Silent Attenuation
Highly attenuated exhaust muffler structures are mounted on precision anti-vibration supports. Tight panel clearances and structured intake sound traps keep acoustics comfortable for urban locations.
Low Transient Reactance Alternator
Coupled with low transient reactance alternators and heavy reinforced damper coils, wave distortion is minimized. This safeguards precision industrial servers, computers, and medical equipment.
Automatic Fuel Air Bleeding
No more tedious manual priming. If the engine stops due to empty fuel, simply top off the tank, turn the starter key to the ON position, and the system automatically bleeds trapped air out of lines instantly.
Deep-Dive Individual Model Breakdown
Explore comprehensive details for each premium model in the Airman SDG Series from 10.5 kVA up to 300 kVA.

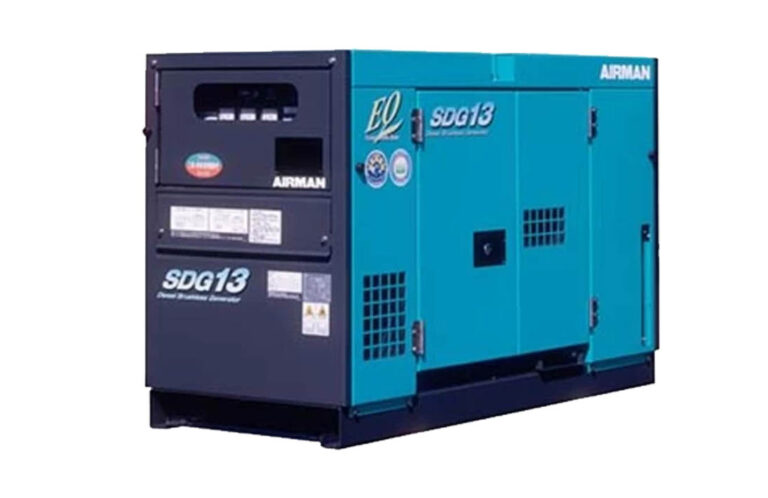

Model: SDG13S
13.0 kVA
Max Rated Output
The SDG13S is perfect for telecom base stations, retail sites, and remote residential field deployment. Powered by a high-efficiency 3-cylinder Kubota liquid-cooled diesel engine, it delivers optimal multi-phase output with incredibly low vibrations.
- Engine model: Kubota D1503-K3A
- Fuel at 75% Load: 5.7 L/hr
- Fuel Tank Capacity: 58 Liters
- Net Dry Weight: 520 kg

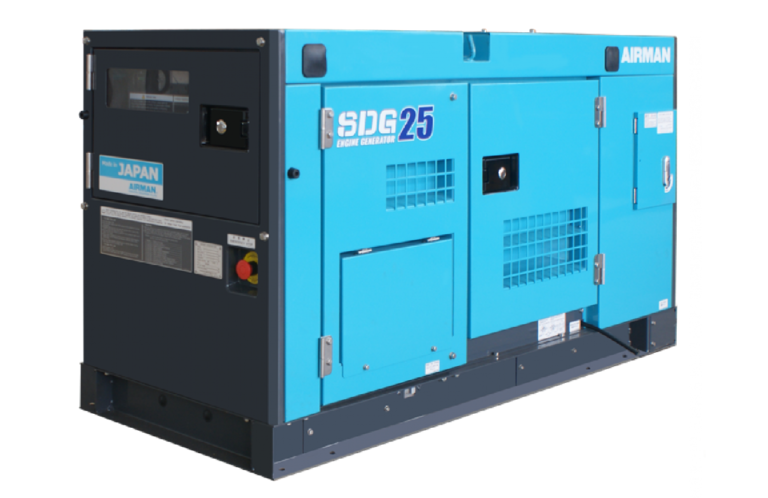

Model: SDG25S
25.0 kVA
Max Rated Output
Widely deployed across construction job sites and cold-chain supply backups. Features a robust 4-cylinder engine setup with auto air bleeding systems and dual-voltage cross connection switches as a standard inclusion.
- Engine model: Kubota V2403-K3A
- Fuel at 75% Load: 7.0 L/hr
- Fuel Tank Capacity: 70 Liters
- Net Dry Weight: 610 kg

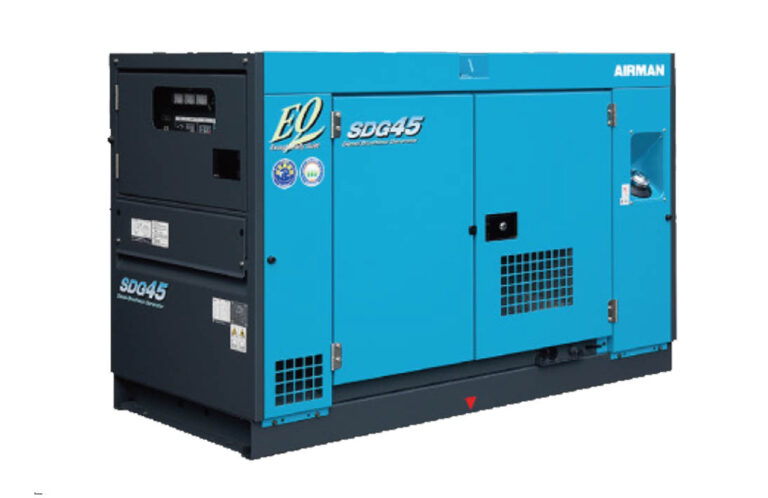

Model: SDG45S
45.0 kVA
Max Rated Output
Equipped with a turbo-charged high-efficiency Kubota power-train. Built flat-frame internally for easy floor washes and cleanouts, and provides reliable clean waveforms for precision instrument banks.
- Engine model: Kubota V3800-DI-T
- Fuel at 75% Load: 11.0 L/hr
- Fuel Tank Capacity: 135 Liters
- Net Dry Weight: 1,120 kg

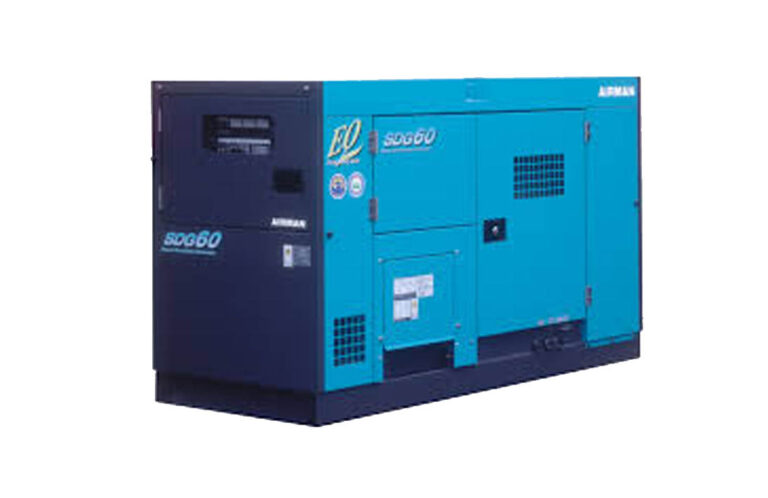

Model: SDG60S
60.0 kVA
Max Rated Output
Driven by heavy-duty Isuzu diesel mechanics. This unit features advanced shunt trips as standard equipment to trip the main circuit breaker in case of an emergency shutdown, safeguarding electrical circuits.
- Engine model: Isuzu BB-4BG1T
- Fuel at 75% Load: 15.0 L/hr
- Fuel Tank Capacity: 135 Liters
- Net Dry Weight: 1,120 kg

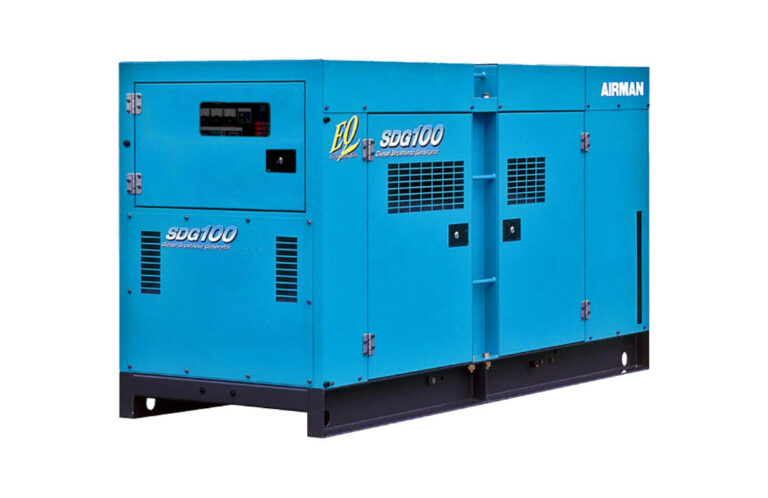

Model: SDG100S
100 kVA
Max Rated Output
Features a 6-cylinder Isuzu direct injection setup with an integrated 225L extended range sub-tank. Built specifically to handle large motor starts, heavy load spikes, and critical emergency warehouse infrastructures.
- Engine model: Isuzu DD-6BG1T
- Fuel at 75% Load: 24.0 L/hr
- Fuel Tank Capacity: 225 Liters
- Net Dry Weight: 1,640 kg

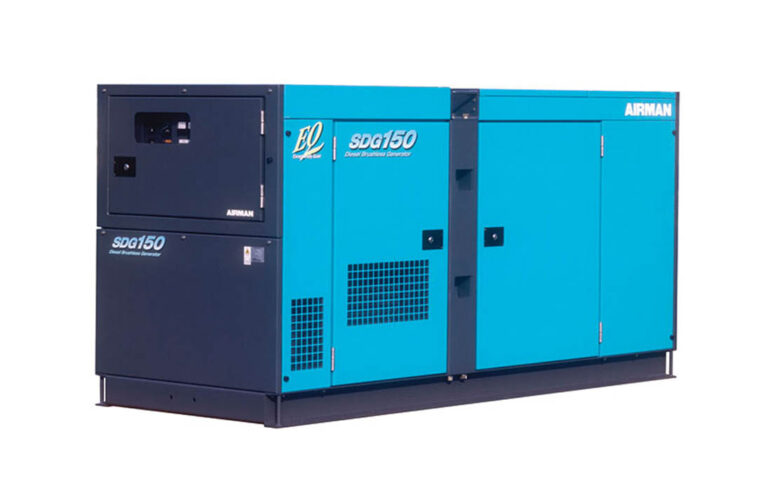

Model: SDG150S
150 kVA
Max Rated Output
Powered by a magnificent 6-cylinder Hino heavy diesel drivetrain. Includes automatic parallel operation system lines (CCR cross-current prevention) as a factory-standard feature for synchronized heavy scaling.
- Engine model: Hino J08C-UD
- Fuel at 75% Load: 22.0 L/hr
- Fuel Tank Capacity: 250 Liters
- Net Dry Weight: 2,180 kg

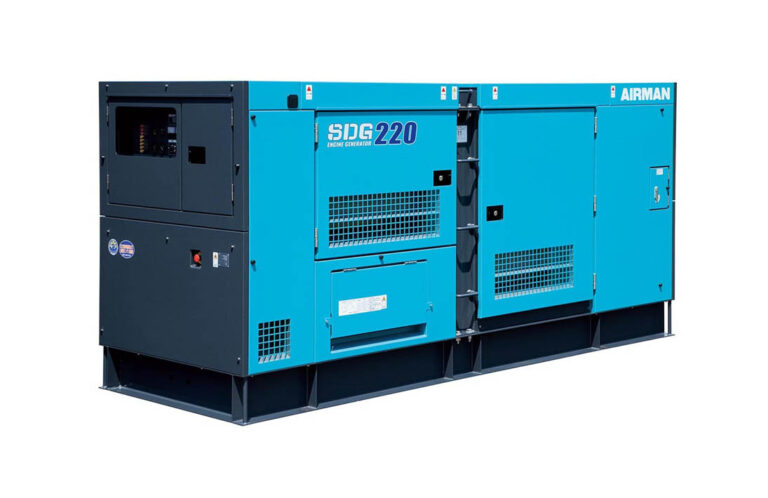

Model: SDG220S
220 kVA
Max Rated Output
Driven by high-power Mitsubishi engineering, built to provide tremendous instant electric flow for high startup demands such as earth augers, heavy mining drills, and vibro-hammer industrial operations.
- Engine model: Mitsubishi 6D24-TLE2B
- Fuel at 75% Load: 29.2 L/hr
- Fuel Tank Capacity: 490 Liters
- Net Dry Weight: 3,790 kg

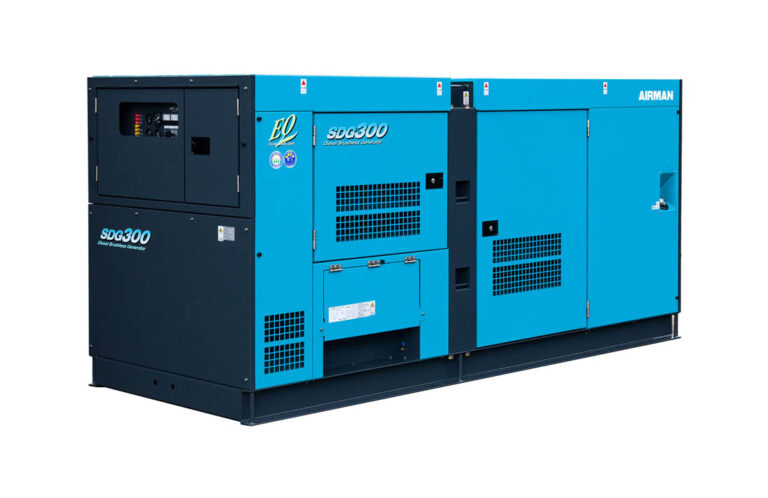

Model: SDG300S
300 kVA
Max Rated Output
The crown jewel of heavy power systems. Utilizing highly efficient direct-injection turbochargers with integrated intercoolers by Komatsu, it offers optimal fuel utilization metrics and superior circuit line stabilization.
- Engine model: Komatsu SAA6D125E-2-B
- Fuel at 75% Load: 39.0 L/hr
- Fuel Tank Capacity: 390 Liters
- Net Dry Weight: 3,240 kg
Technical Specifications Comparison Matrix
| Model Name | Freq (Hz) | Rated kVA | Engine Make/Model | Cylinders | Fuel Tank (L) | Dry Mass (kg) | Classification |
|---|---|---|---|---|---|---|---|
| SDG13S | 50 / 60 | 10.5 / 13.0 | Kubota D1503-K3A | 3 | 58 (Extended: 95) | 520 | Super Silent |
| SDG25S | 50 / 60 | 20.0 / 25.0 | Kubota V2403-K3A | 4 | 70 (Extended: 145) | 610 | Super Silent |
| SDG45S | 50 / 60 | 37.0 / 45.0 | Kubota V3800-DI-T | 4 | 135 (Extended: 325) | 1,120 | Super Silent |
| SDG60S | 50 / 60 | 45.0 / 60.0 | Isuzu BB-4BG1T | 4 | 100 (Extended: 400) | 900 | Super Silent |
| SDG100S | 50 / 60 | 80.0 / 100 | Isuzu DD-6BG1T | 6 | 225 (Extended: 740) | 1,640 | Super Silent |
| SDG150S | 50 / 60 | 125 / 150 | Hino J08C-UD | 6 | 250 (Extended: 815) | 2,180 | Super Silent |
| SDG220S | 50 / 60 | 200 / 220 | Mitsubishi 6D24-TLE2B | 6 | 490 (Extended: 980) | 3,790 | Super Silent |
| SDG300S | 50 / 60 | 270 / 300 | Komatsu SAA6D125E-2-B | 6 | 390 | 3,240 | Highly Silent |
This advanced built-in automatic transfer scheme interfaces directly with SDG series units to form an autonomous grid safety fence.
SDG-E Series Automatic Control &
ATS Integration
When grid supply fluctuates or fails completely, the Airman SDG-E intelligence engine automatically senses the drops, executes sequential safe starts within seconds, transfers critical operations seamlessly, and safely idles once utility power restores.
